Research focus

Early blastocyst: The embryo after the first lineage decision consists of two cell types. The trophectoderm will originate the fetal placenta while the inner cell mass will form embryonic tissues. Fluorescence microscopy can visualise the cell lineages by utilization of specific markers: trophectoderm cells (green, CDX2 marker), primitive endoderm cells (blue, SOX17 marker) und epiblast cells (red, NANOG marker).

Unwanted childlessness is an important topic worldwide and different reasons apart from sub- and infertility led to this trend. On the female side, the increasing age leads to a significant decrease of becoming pregnant naturally and reduces the effectiveness of possible treatments to overcome sub- and infertility. Since the beginning of the records of the German IVF registry (1997), 319.119 children have been born using assisted reproduction in Germany [1] and since more than four decades fertilization and early embryo development can also take place artificially in a petri dish. This means that eggs, sperm, and embryos are handled outside of their natural environment in an artificial environment for a period of time that ranges from hours to days. The environment should be as similar as possible to the natural surrounding. To further improve the quality of embryo culture media and to mimic in vivo nutrition, growth factors like granulocyte macrophage colony-stimulating factor (GM-CSF) became attractive candidates for medium supplementation. GM-CSF is a cytokine influencing the maternal-fetal interface and supporting placental development in mouse and human. It is expressed in epithelial cells of the endometrium under regulation of estrogens. A large clinical trial showed that GM-CSF supplemented embryo culture medium leads to an increased survival of embryos up to week 12 [2]. Especially in women with previous miscarriages GM-CSF supplementation of culture media improved implantation rates. Animal and cell culture studies on trophectoderm cells supported an effect on cellular expansion and pluripotency pathways after exposure to GM-CSF [3].


[1] Deutsches IVF-Register 2019 (D·I·R); Journal für Reproduktionsmedizin und Endokrinologie
[2] Ziebe S, Loft A, Povlsen BB, Erb K, Agerholm I, Aasted M, Gabrielsen A, Hnida C, Zobel DP, Munding B, Bendz SH, Robertson SA. A randomized clinical trial to evaluate the effect of granulocyte-macrophage colony-stimulating factor (GM-CSF) in embryo culture medium for in vitro fertilization. Fertil Steril. 2013 May;99(6):1600-9. doi: 10.1016/j.fertnstert.2012.12.043.
[3] Sjöblom C, Wikland M, Robertson SA. Granulocyte-macrophage colony-stimulating factor (GM-CSF) acts independently of the beta common subunit of the GM-CSF receptor to prevent inner cell mass apoptosis in human embryos. Biol Reprod. 2002 Dec;67(6):1817-23. doi: 10.1095/biolreprod.101.001503.

  • Study 1 – Effect of GM-CSF on early embryo development in mice

    The success of ART is a healthy live birth. To reach this goal researchers and clinicians try to increase pregnancy rates by supporting the pre-implantation embryo as good as possible. However, it is not only important to support the embryo at its best, but it is also equally important to do no harm to the embryo. This holds true also for a culture medium that should have no influence on the normal developmental program of an embryo. Aim of this study is to investigate, if the supplementation of GM-CSF in a human ART medium or in a mouse optimized medium leads to a change in cell number and cell lineages in the early pre-implantation mouse embryo.

  • Study 2 – Effect GM-CSF on placental development in mice

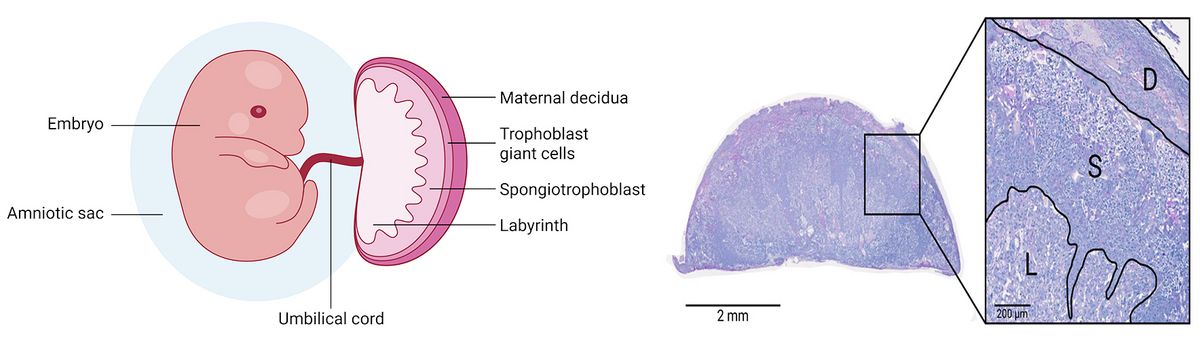

    Mouse placenta.
    The mature placenta consists of the three major layers labyrinth, spongiotrophoblast and decidua. A layer of trophoblast giant cells builds the connection between the fetal and maternal placenta tissue.
    In a stained placenta section, the different layers can be distinguished by the staining intensity and color.

    In this study we hypothesize that different concentrations of GM-CSF supplemented into a culture medium have an effect on trophectoderm cells which then affects placental development during and after implantation. The aim of this study is to examine if an in vitro preimplantation cultivation with GM-CSF has any effect on the morphological structure of the placenta.
